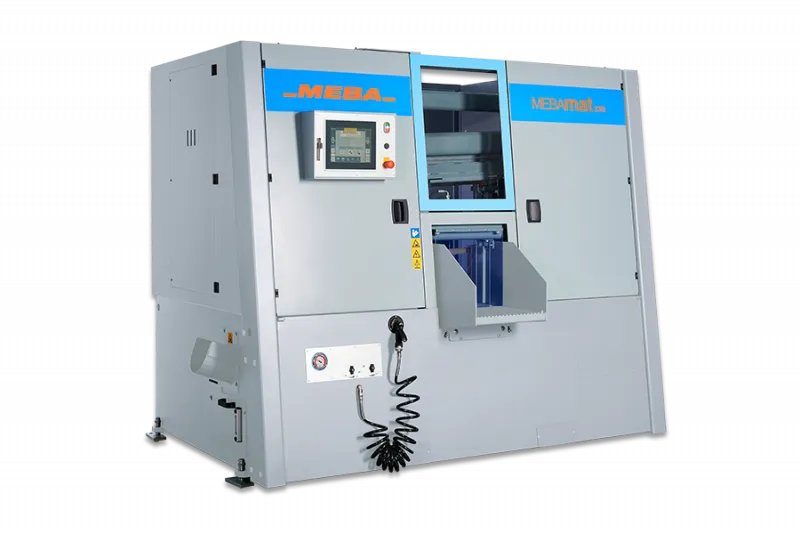

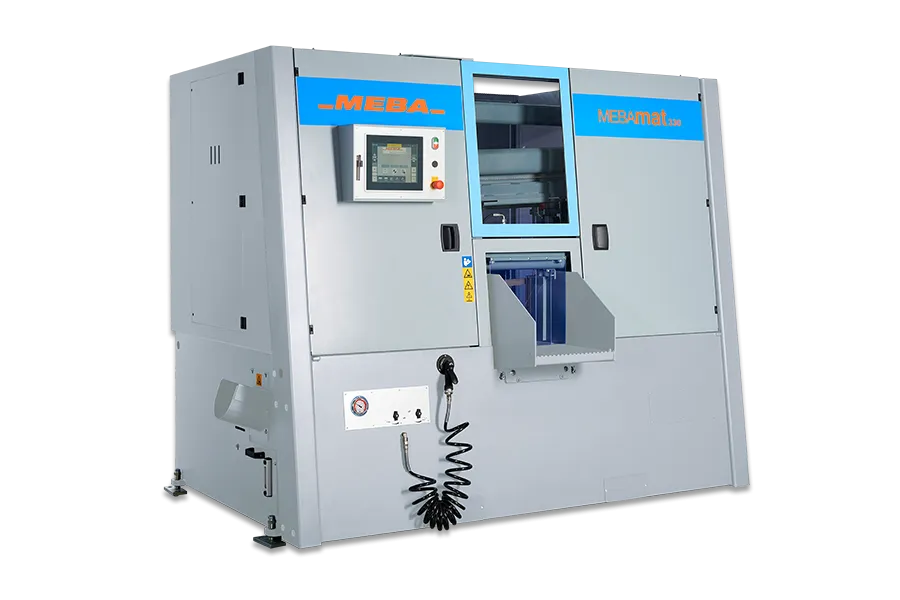

MEBAmat 330

MEBAmat: The powerhouse for efficient production use

For a wide range of sawing tasks and maximum productivity: The high-performance automatic saw cuts everything from soft to extremely hard materials, using all tool types, from bimetal to carbide. Fully networked and automated processes minimize overhead costs and require minimal personnel – ideal for continuous operation in single- or multi-shift use. The enclosed design ensures safe and clean operation.

Standard equipment

• Stable, torsion-free machine frame for highest quality
• Optimized chip flow via angled, converging material support surfaces
• Closed support surfaces for easy cleaning and reduced chip accumulation
• Hydraulics protected inside the machine frame yet easily accessible
• Leveling feet, forklift pockets, and tie-down eyes included as standard
• Optional retrofittable screw-type chip conveyor
• Full enclosure according to CE standards for quiet and safe operation
• Integrated control cabinet with large swing doors and service openings for easy access
• Plexiglass window for safe observation of the sawing process
• Double-portal saw frame with ball screw drive, low vibration, 3° tilt for improved cut quality
• Hydraulically pre-tensioned saw blade with carbide sliding guides and hardened anti-twist rollers
• Roller-guided blade back for high cutting pressures and longer blade life
• Automatic adjustment of blade guidance according to material cross-section
• Saw frame feed via servo drive, stepless 0–600 mm/min, high force transmission
• Permanent cutting pressure and feed monitoring for process reliability
• Hydraulic saw blade tension for constant tension and blade break monitoring
• Saw blade cleaning with double brush, synchronized to blade speed, self-adjusting and removable
• Material height adjustment, manual or automatic; optional laser height and width detection

• Hydraulic clamp system with full-stroke cylinder, reversible clamping bars, linear ball-screw guides, material-end detection; optional hydraulic lift

• Freestanding machine roller conveyor, load capacity up to 650 kg/m, 8 support rollers, ball-bearing, easily replaceable

• Material lift device raises material after cutting, increasing blade life

• Angled cut-off chute with integrated coolant return; optional support table for chip discharge

• 3.9 kW saw motor, stepless 15–150 m/min, double-sided stable bearings

• Coolant system: 160 l tank, filter screen, 90 l/min pump at 3 m lift, easily removable; optional electronic level and flow monitoring

• Operation via touchscreen, bus networking, Windows CE, buffer system, and remote maintenance with service router
