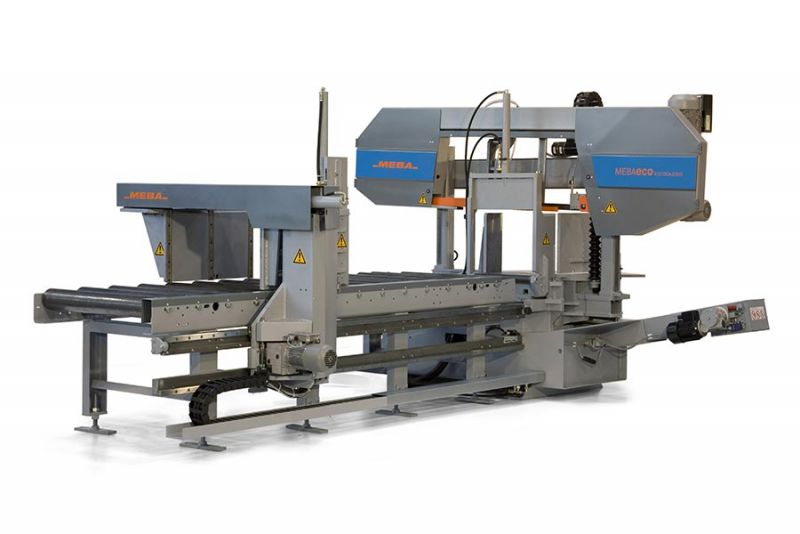

MEBAeco 510 A-1300

MEBAeco: Ready-made individuality

2-column linear-guided metal band saw automatic for straight cuts. Particularly suitable for versatile use with different cross-sections and materials.

Standard equipment

• Access protection according to CE standard via light barrier
• MEBA band saw automatic in proven two-column linear design with integrated MEBA clamp feed system from 5–1300 mm per stroke (extendable in 1000 mm increments; clamp feed built on a manual MEBA roller conveyor)
• Menu-driven, intelligent 4.3″ touchscreen control using Windows CE 6.0: program memory for 1000 datasets; full bus networking; option to switch measurement units; documentation and information on faults and warnings
• MEBA high-performance package: saw feed via frequency-controlled ball screw drive with automatic monitoring of cutting pressure and feed, ensuring optimal conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles

• Integrated operating hours counter for production data collection

• Slip-free material transport through adjustment of the feed speed; fast and precise material length feed via rack and AC drive with a maximum stroke length of 1300 mm and integrated roller conveyor up to 2000 mm
• Double-sided opening of the clamping jaws of the clamp feed system
• Serrated bars for heavy material transport
• Saw frame in massive, low-vibration welded steel construction
• Saw blade set at a 3° angle to the material support surface for highest cutting performance and long service life when cutting structural steel profiles
• Combined saw blade guidance, precision bearings for low-wear band deflection; beveled carbide sliding guides for saw blade guidance
• Rapid lowering of the saw frame via automatic height switch bar down to just above the material. In series cutting, the saw frame moves only slightly above the material, allowing positioning of a new section. Optimized cycle times for single and series cuts
• AC frequency-controlled saw blade drive, continuously adjustable 15–150 m/min
• Preloaded, maintenance-free ball recirculating linear guides on the material feed and saw frame feed for smooth, jerk-free, and vibration-damped feed
• Separately positioned control panel
• Movable band guide arm, adjustable to material width
• Chip cleaning brush running with the saw
• Hydraulic saw blade tension
• Operating manual and spare parts list (digital)
• 1 MEBA bimetal saw blade 4/6 TPI supplied with the machine
• CETOP hydraulic system
• Coolant system (approx. 100 liters), optionally combinable with MEBA Eco micro-dosing system
• Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)
• Modem for remote access including dashboard (overview of all relevant machine data) included. Duration 1 year (valid only for machine location in Germany: including final maintenance after warranty period. During warranty, the modem remains the property of MEBA)
