MEBAeco 510
MEBAeco: Ready-made individuality 2-column guided high-performance metal band saw with semi-automatic operation. A metal band saw for straight cuts, particularly suitable for versatile use with different cross-sections and hard materials. Standard equipment Semi-automatic sawing cycle with workpiece clamping – cutting…
Technical attributes
| Brand | MEBA |
|---|---|
| Cutting Capacity | Ø 510 mm / 700 x 500 mm |
| Working Area | 700 x 500 mm |
| Automation | Semi-automatic |
| Power | 7.5 kW |
| Recommended Use | General metal cutting, Straight cutting |
| Operation Type | Bandsaw |
| Recommended Materials | Carbon Steel, Stainless Steel, Aluminum |
| Thickness Range Mm | 0-510 mm |
| Work Area Mm | 700 x 500 mm |
| Automation Level | Semi-automatic |
| Budget Class | Entry |
| Max Section Mm | 510 mm |
| Power Kw | 7.5 kW |
| Recommended Use Case | General metal cutting, Straight cutting |
Description

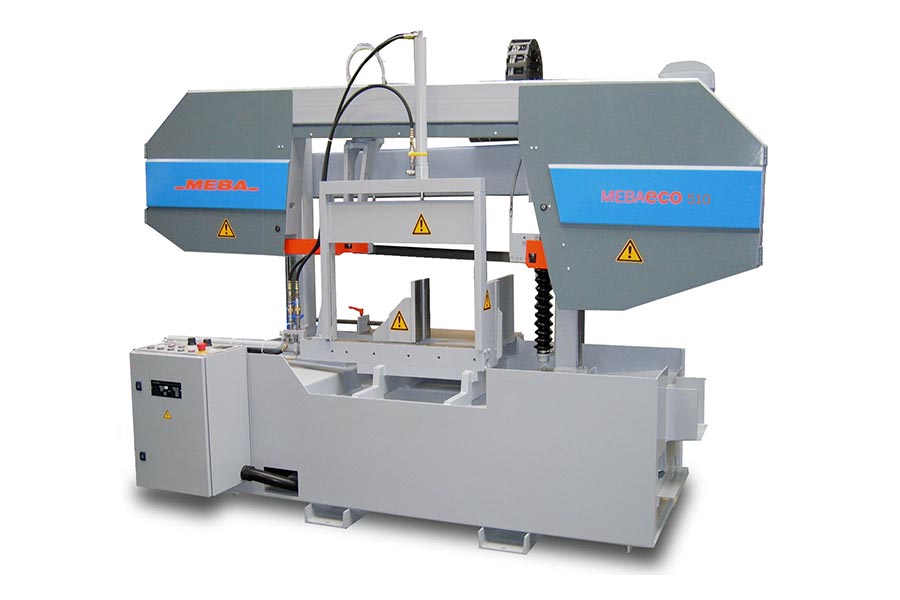

MEBAeco: Ready-made individuality
2-column guided high-performance metal band saw with semi-automatic operation. A metal band saw for straight cuts, particularly suitable for versatile use with different cross-sections and hard materials.
Standard equipment
- Semi-automatic sawing cycle with workpiece clamping – cutting – lifting to the set height after the cut is completed
- MEBA high-performance package: saw feed via frequency-controlled ball screw drive with automatic monitoring of cutting pressure and feed. Ensures optimal conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles
- Rapid lowering of the saw frame via push button down to the material edge
- Permanently mounted control panel
- Hydraulic full-stroke workpiece clamping with rapid material clamping. Double vise ensures the material is clamped on both infeed and outfeed sides
- Rigid two-column saw frame with linear guides
- Saw blade set at a 3° angle to the material support surface
- Central machine operation
- Movable band guide arm, adjustable to material width
- Saw blade guide rollers with carbide guides
- Chip cleaning brush running with the saw
- Hydraulic saw blade tension with pressure relief when the machine is stopped
- Operating manual and spare parts list (digital)
- 1 MEBA bimetal saw blade 4/6 TPI supplied with the machine
- CETOP hydraulic system
- Coolant system (approx. 100 liters), optionally combinable with MEBA micro-spray system
- Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)
Optional
- Laser pointer for cut line marking / layout cuts
- Driven chip brush
- Micro-dosing system
- Clamping pressure regulation for fixed control panel
- Hydraulic material bundle clamping
- Material support table
- Material support table with lifting roller
- Separately positioned control panel
- Main vise opens after the cut is completed
- LED work light
- Minimum speed monitoring at the band wheel
- Measuring stop 0–500 mm
- Special 2-color paint finish according to RAL chart
- Chip conveyor for optimal chip removal
- Cut progress monitoring for semi-automatic 510 / 510 DG
- Water spray gun
- Compressor for micro-dosing system
- Heating for hydraulic unit
- Coolant heater
- Roller conveyors available in various lengths
Specifications subject to change without notice.
