MEBAeco 335 GA
MEBAeco: Ready-made individuality 2-column automatic metal band saw with infinitely variable miter adjustment from 90° to 30°. The MEBAeco 335 GA automatic miter band saw is universally applicable, ergonomically designed, and offers excellent value for money. The machine control system complies with CE standard 89/289….
Technical attributes
| Brand | MEBA |
|---|---|
| Cutting Capacity | Ø 335 mm / 500 x 335 mm |
| Working Area | 500 x 335 mm |
| Automation | Automatic |
| Power | 3.0 kW |
| Recommended Use | Angular cutting, Serial production |
| Operation Type | Bandsaw |
| Recommended Materials | Carbon Steel, Stainless Steel, Aluminum |
| Thickness Range Mm | 0-335 mm |
| Work Area Mm | 500 x 335 mm |
| Automation Level | Automatic |
| Budget Class | Entry |
| Max Section Mm | 335 mm |
| Power Kw | 3.0 kW |
| Recommended Use Case | Angular cutting, Serial production |
Description

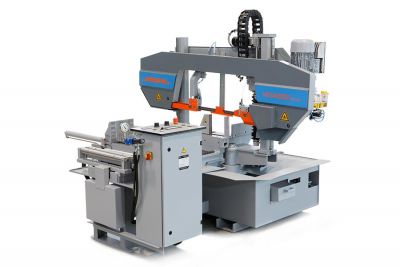

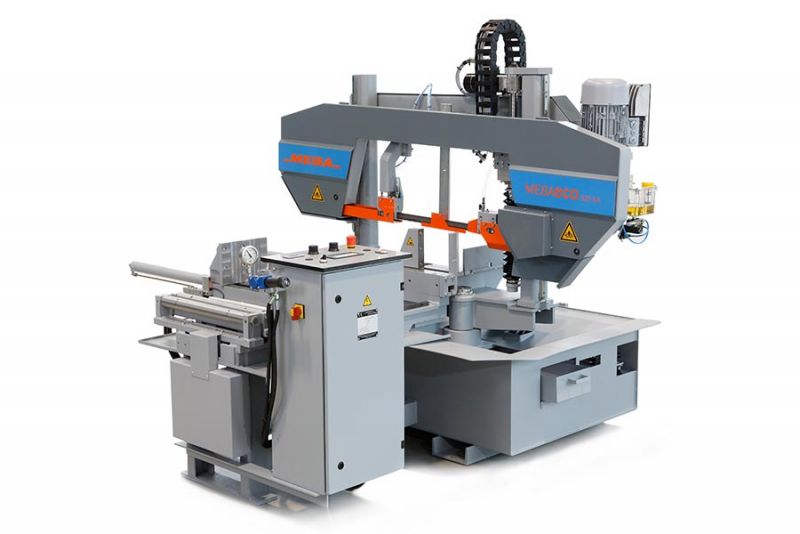

MEBAeco: Ready-made individuality
2-column automatic metal band saw with infinitely variable miter adjustment from 90° to 30°. The MEBAeco 335 GA automatic miter band saw is universally applicable, ergonomically designed, and offers excellent value for money. The machine control system complies with CE standard 89/289.
Standard equipment
- Access protection in accordance with CE standard via protective fence
- Fully automatic sawing process after entering the length and setting the number of pieces
- Workpiece clamping-sawing-ramping up-positioning
- Manual miter adjustment from 90° to 30°, infinitely variable according to scale
- The miter pivot point is the intersection between the saw blade and the material support, which means that the length measurement does not change when the angle position is altered.
- MEBA high-performance package: Saw feed via frequency-controlled spindle drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
- Hydraulic full-stroke material clamping
- Quick material clamping
- The material is clamped parallel at 90° for every angle setting of the saw frame.
- Automatic operation also possible with miter setting
- Stable two-column linear-guided saw frame
- Saw blade positioned at a 3° angle to the material support surface
- Central machine control
- Automatic saw frame clearance height adjustment
- Minimum speed and saw blade breakage monitoring on the band disc
- AC frequency-controlled band saw drive, infinitely variable from 15 to 150 m/min
- Electronic PLC control
- Menu-driven, intelligent 4.3" touchscreen control via Windows CE 6.0 operating system: Program memory for 1000 data records; Continuous bus networking; Option to switch between units of measurement; Documentation and information on faults and warnings
- Automatic cutting channel calculation with double stroke function Material length feed via backlash-free ball screw and servo positioning technology. Positioning accuracy 0.1 mm
- Adjustment of insertion speed depending on material weight
- Built-in operating hours counter
- Material feed function for short non-productive times—no need to re-clamp the material for short sections
- Material section length: Single stroke up to 600 mm, multiple strokes up to 9999 mm
- Movable belt guide arm, adjustment to material width
- Saw blade deflection rollers - carbide guide
- Chip cleaning brush, rotating
- Saw blade tension with torque wrench
- Operating instructions and spare parts list (digital)
- 1 MEBA bimetal saw blade 4/6 ZpZ on machine
- Coolant system (approx. 100 liters). Can be combined with MEBA Eco micro-dosing system as an option
- Silver gray/blue gray paint finish (RAL 7001/RAL 7031)
- Modem for remote access including dashboard (overview of all relevant machine data) included in delivery. Term: 1 year. (Valid only for machines located in Germany: includes final maintenance after warranty expires. During the warranty period, the modem remains the property of MEBA.)
Optional
- Laser light for cutting line display/scoring saws
- Chip brush driven
- Microdosing system
- Tension pressure regulation with fixed control panel
- Hydraulic material bundle tension 335 GA
- 7" CE Panel MEBAeco 335 GA
- Zero stop (automatic 0 positioning)
- Control panel set up separately, cable length 2.5 m
- LED work light
- Measuring stop 0 - 500 mm
- Special two-color paint finish according to RAL chart
- Hydraulic saw blade tensioning 335 GA
- Scraper belt conveyor for optimal chip disposal
- Mobile chip tipping container for forklift transport
- Opening the slide-in clamping device on both sides
- Grooved clamping strips for 335 GA, ES, and HS
- Water spray gun
- Compressor for microdosing system
- Heating for hydraulics
- Heating coolant
- Mounting elements (6x M16)
- Additional doors in the protective fence
- Section slide swinging along
- Hydraulic miter clamping including digital miter cut control
- USB port
- MEBA NC Server: External Postprocessor: Data Exchange OPC-UA for P300 incl. 10 m patch cable
- Rollenbahnen sind in verschiedenen Längen verfügbar
Specifications subject to change without notice.
