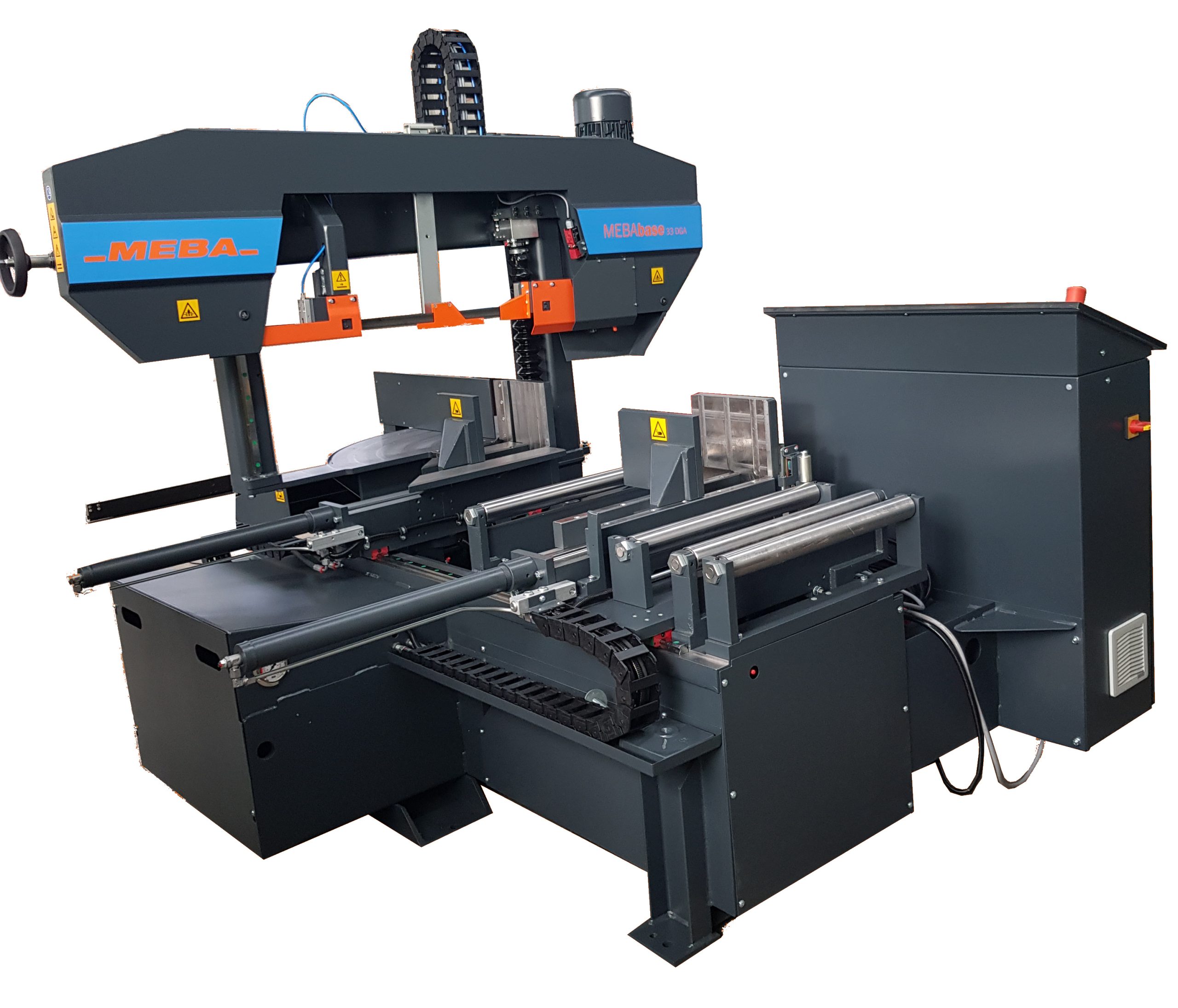

MEBAbase 33 DGA

MEBAbase: The must-have for doers

The starter saws of the MEBAbase series are suitable for a wide range of applications and are reliable all-rounders. Whether for your hobby in the garage, craftsman or metal worker - there is something for everyone.

Standard equipment

• Access protection in accordance with CE standard with protective fence
• Fully automatic sawing process with combination of length, number of pieces, miter left + right
• MEBA - Visualized program input with CNC control. Easy program creation and management of up to 255 programs.
• MEBA high-performance package: Saw feed via servo-controlled ball screw drive with automatic cutting pressure and feed monitoring, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
• Fast and precise material length feed via backlash-free ball screw and servo positioning technology.
• Floating mounted insert clamp
• Electronic panning
• Rapid descent of the saw frame via push button to the edge of the material
• Patented double miter system (ERP No. 0491120): Unique automatic double miter band saw, where miters on both sides can be adjusted easily and economically by simply swiveling the saw frame and the material support.
• Automatic movement of the clamps and digital miter adjustment to 0.1°
• The miter pivot point is the intersection between the saw blade and the fixed clamping jaw, which means that the length measurement does not change when the angle position is altered
• Hydraulic full-stroke workpiece clamping. At every angle position, the material is clamped parallel at 90°, thus eliminating any force components that press the material diagonally against the fixed clamping jaws
• Stable two-column linear-guided saw frame
• Saw blade positioned at a 3° angle to the material support surface
• Saw frame clearance height adjustment automatically via height switch bar
• AC frequency-controlled band saw drive, infinitely variable from 15 to 150 m/min
• Minimum speed and saw blade breakage monitoring on the band disc
• Movable belt guide arm, adjustment to material width
• Saw blade deflection rollers - carbide guide
• Chip cleaning brush, rotating
• Saw blade tension with torque wrench
• 1 MEBA bimetal saw blade 4/6 ZpZ on machine
• CETOP hydraulic system with filter and oil control
• Microdosing system
• Modem for remote access included in delivery
• Anthracite paint finish (RAL 7016)
